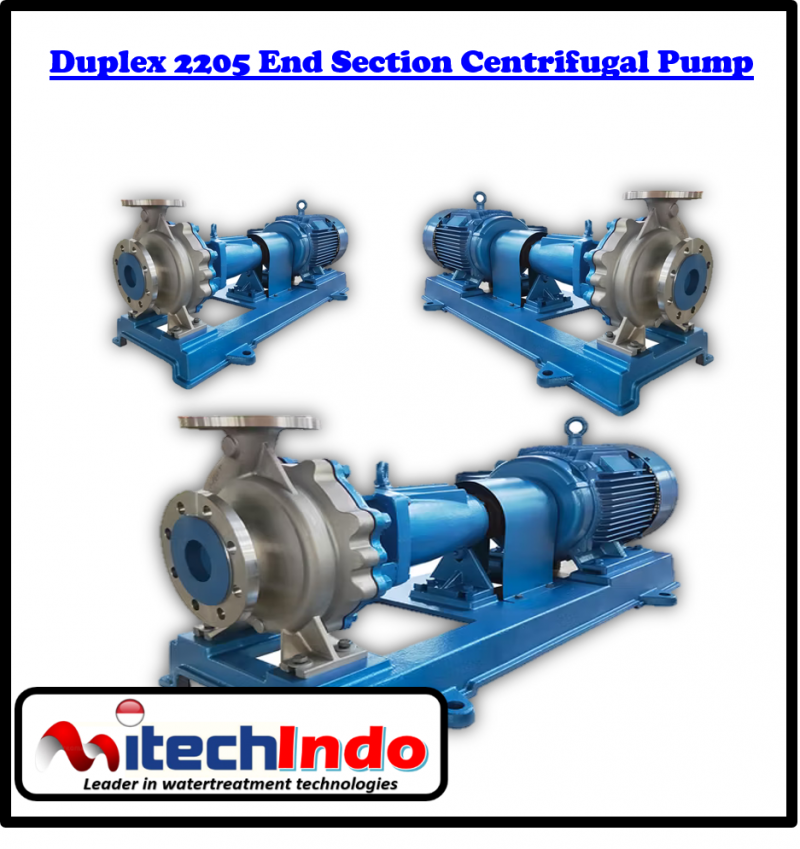

CENTRIFUGAL END SECTION PUMP-DUPLEX 2205
FLOW RATE 120.000 LITRES PERHOUR

Pump Descrition:
LSE series pump is single stage single suction centrifugal pump.
The pump is mainly composed by pump cover, impeller, shaft and other spare parts.
Shaft is supported by two deep groove ball bearings.
Bearings with machine oil or grease lubrication.
Use soft packing or mechanical seal is used for sealing medium. Motor is directly driven by the flexible coupling.

Applications:
LSE pumps are for delivery of water physical and chemical properties similar to liquid water,
it is suitable for the factories, mines, urban water supply and drainage, air conditioning, fire and
agricultural irrigation purposes.

Pump Specification :
Max Flow Rate   : 120M³ Perhour
Max Head          : 40 Metres
Motor Power      : 22 KWx380V
Max Temperature :100°C
Casing Cover     : Duplex 2205
Impeller Material: Duplex 2205

Bearing              : NSK
Shaft Material     : SS420
Shaf Sealing       : Mechanical Seal

With high quality components and advanced system design, the equipment provides purified water steadily, for :

1. Treating municipal Water,
2. Well and surface water
3. Sea Water Distribution

( INCLUDE PUMP+ basePLATE+ MOTOR+ COUPLINGS+ COUPLINGS GUARDS)
