FLOW RATE 140.000 LITRES PERHOUR
Pump Descrition:

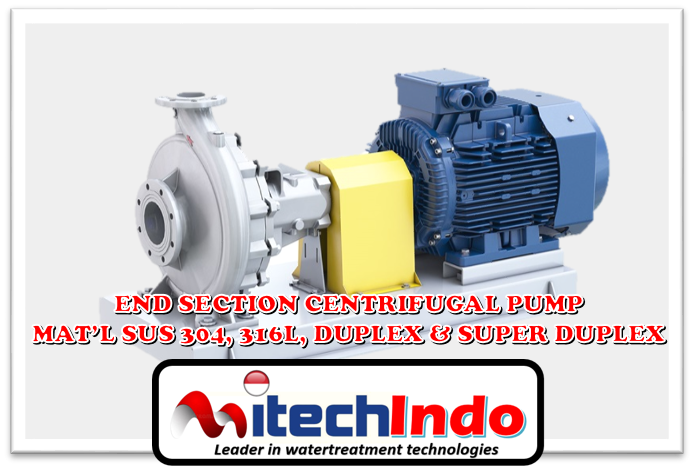

LSE series pump is single stage single suction centrifugal pump.
The pump is mainly composed by pump cover, impeller, shaft and other spare parts.
Shaft is supported by two deep groove ball bearings.
Bearings with machine oil or grease lubrication.
Use soft packing or mechanical seal is used for sealing medium. Motor is directly driven by the flexible coupling.
Applications:
LSE pumps are for delivery of water physical and chemical properties similar to liquid water,
it is suitable for the factories, mines, urban water supply and drainage, air conditioning, fire and
agricultural irrigation purposes.
Pump Specification :
Max Flow Rate : 140M³ Perhour
Max Head : 40 Metres
Motor Power : 30KWx380V
Max Temperature :100°C
Casing Cover : SS316L
Impeller Material : SS316L
Bearing : NSK
Shaft Material : SS316
Shaf Sealing : Mechanical Seal
